Fire protection socket inside the wall

Fire protection socket inside the wall – for fire protection of electrical boxes – is installed inside plasterboard partitions to increase the fire safety of electrical connections. The fire resistance class corresponds to 2x the fire class of hard plaster. Product dimensions and material selection according to wishes

Properties. The product protects the fire safety of electrical installations (switches, plugs, etc. connections) in the wall. The product has similar properties as drywall

Usage. The product is intended for use in rooms with a relative humidity of no more than 70%. The maximum installation temperature is 50°C. Normal room temperature is recommended for installation

Installation

⇒ The corresponding technical solutions have been provided by the construction project developer for installation on construction sites

⇒ The product is screwed to a wooden or metal frame with a minimum of 4 screws. If the shape of the product and the profile of the nearby surface allow it, the product can be properly attached to it

⇒ It is recommended to use either wooden material or a metal frame to connect products to each other

Fixing. The requirements for screwing the product are described in the installation instructions for plasterboard and plasterboard wall frames

Cutting. It is not recommended to cut the product – this reduces fire resistance

Finishing. The edges of the product can be covered with fireproof sealant in places where it comes into contact with the plasterboard

Fire protection. The product contains a double-layer fire protection from all directions (except for the surface of the niche, which is protected by the wall). Of the plaster materials, a 2x15mm layer of fireproof plaster provides 60 minutes of protection from open fire. The use of special plasters increases the protection up to 40 minutes. 2×12.5 hard plaster provides fire protection for 24 minutes and 2×12.5mm fireproof plaster for 30 minutes, which is generally considered sufficient.

Storage. Products should be stored on a smooth surface, preferably on a pallet. Protect products from moisture

Transportation on the construction site

⇒ When transporting the product, it is necessary to prevent the product from falling or being damaged in any other way

⇒ If there is a risk that the product will be damaged during transport, additional covers or additional fastenings must be used

⇒ The internal support blocks and mounting tape (if any) of the details are removed immediately before installation, if necessary

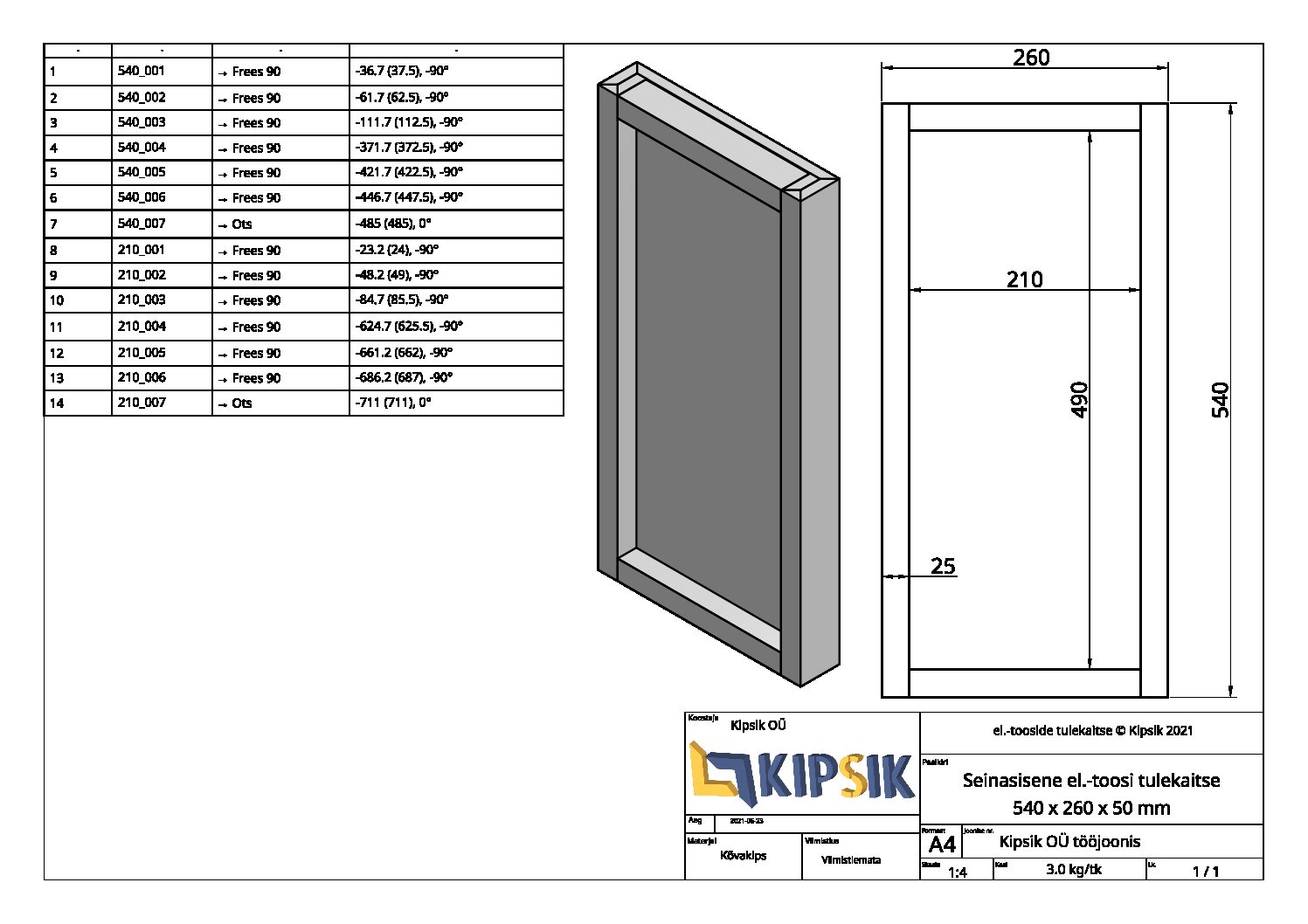

Electrical fire protection with sheet metal, manufacturing information

⇒ Gypsum board according to the customer’s wishes, the specified external (v) and internal dimensions (s) are used

⇒ PUR glue D4, 1-component, adheres well to the cut plaster edge, the customer can opt out of gluing

⇒ Fireproof sealant up to 1500°, for sealing joints inside the niche

⇒ Tape to fix the shape of the product during gluing and transportation (if necessary)
