Dome Ø1.75m, in two parts

Dome Ø1.75m, in two parts, decorative and acoustic recess in the ceiling. The inner height of the dome is 638mm, the concave surface is covered with a uniformly convex and smooth, 15-20mm thick layer of model plaster. The outer part of the dome is made of plasterboard fragments, which are supported by plywood arches. The surface of the plasterboard dome is treated with waterproofing before applying the model plaster. The halves of the dome are installed separately and the plywood support arches of each half are screwed together. Product dimensions and technical specifications are made according to the customer’s wishes

Features. The product has similar properties as drywall, except for the places that are machined and glued

Usage. The product is intended for use in rooms with a relative humidity of no more than 70%. The maximum installation temperature is 50°C. Normal room temperature is recommended for installation

Installation

⇒ The corresponding technical solutions have been provided by the construction project developer for installation on construction sites

⇒ It is recommended to install the product on a stone, frame, wood or plaster surface using a wooden or metal frame. If the shape of the product and the profile of the nearby surface allow it, the product can be properly attached to it

⇒ Due to its size, it is recommended to fix the product to all support arches in a way that withstands exposure to external influences

Fixing. In thinner areas of the product (e.g. glued surfaces and gaps related to sawing and milling), it is recommended to use adhesive foam or adhesive sealant instead of screw connections. The requirements for screwing the product are described in the installation instructions for plasterboard. The product is attached to the frame at two levels: both from the bottom edge and from the support arches

Finishing. Similar to finishing drywall

Storage. Products should be stored with the wider part down and on a smooth surface. Protect products from moisture and the risk of damage

Transportation. The transportability of the product and its parts to the installation site must be taken into account

⇒ The product must be carried correctly supported and carefully – high tensile pressure can cause the glued surface to come loose or cracks to form

⇒ If there is a risk that the product will be damaged during transport, additional covers or additional fastenings must be used

⇒ It is recommended to transport long parts in pairs and with two hands

⇒ The internal support blocks and mounting tape of the details are removed (if necessary) immediately before installation

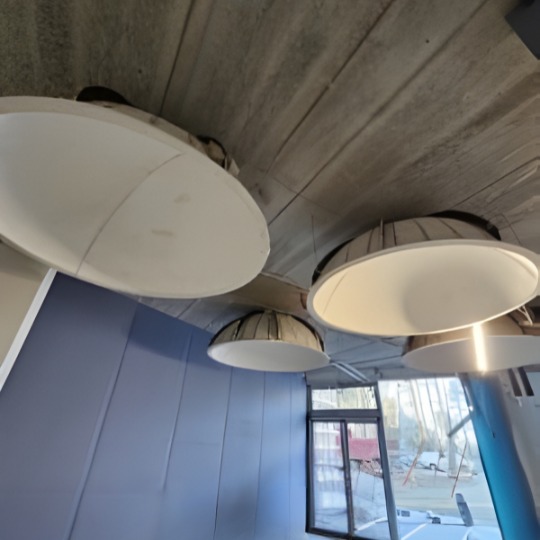

Dimensions. The diameter of the dome shown in the pictures is 1.75m. The diameter of the dome is unlimited – for up to 2.0m, the product consists of two parts, the product in the picture consists of two half-domes. The internal height of the dome is 635mm

Dome Ø1.75m, manufacturing information

⇒ The diameter of the plaster dome and the division of the product into parts according to the external dimensions given by the customer

⇒ At the bottom of the dome in the picture there is a 25mm wide plywood or plaster support arch with an inner Ø1.75m opening

⇒ The weight of the product is approx. 67kg, one plaster half dome in finished form weighs 33.5kg

⇒ The outer part of the dome consists of ordinary plaster fragments covered with putty and reinforcing mesh, which are stiffened from the outside by plywood support arches

⇒ The inner wall of the dome is covered with 15-20mm thick model plaster, which is reinforced by a painting fabric inside the plaster mass

⇒ The plasterboard and model plaster parts of the dome are separated with a hydro-barrier fabric and mastic

⇒ PUR glue D4, 1-component, adheres well to the cut plaster edge

⇒ CNC-cut arch fragments and auxiliary parts to obtain the desired shape during gluing and for transportation

⇒ Tape during gluing and transportation of the product for fixing components
