Product sample, 20mm peat board

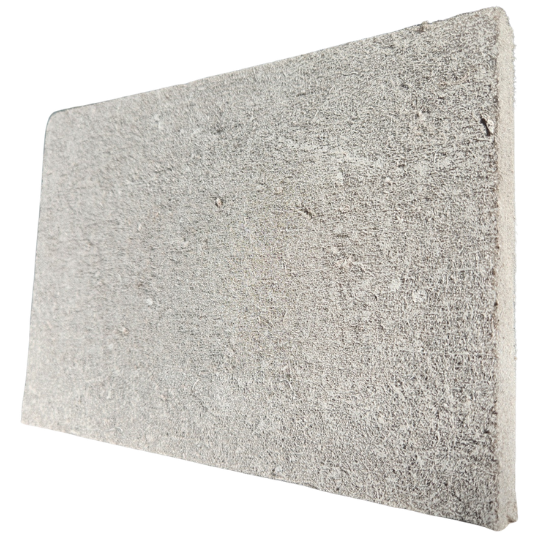

Product sample, 20mm peat board, A4 size – an acoustic, sound-absorbing, unfinished 20mm thick panel pressed from peat moss, cut to a compact size. The Konto peat mat, manufactured in Finland, has excellent sound absorption properties. If a room echoes, it means that sounds (speech, music, machinery, footsteps, etc.) bounce around the space before fading into inaudibility. If this decay time is too long, we perceive it as echo, noise, or stress. An acoustic panel absorbs the sound waves that hit it, preventing sound energy from bouncing and accelerating sound attenuation in the room – shortening the reverberation time. This A4-sized sample piece is covered with one layer of paint on one side and along the edge. The product sample helps in evaluating the suitability of the shape and surface texture.

Use to reduce sound absorption in rooms

⇒ Ceiling mounting using hangers

⇒ Ceiling mounting using a suspended ceiling system

⇒ Adhesive for wall and ceiling surfaces

⇒ Mounting on various surfaces with suitable double-sided tape

⇒ Kattekanga taha kinnitamina⇒ Mounting behind the covering fabric, it is recommended to leave a gap between the light covering fabric and the peat mat to avoid shadowse, soovitatav on jätta vahe heleda kattekanga ja turbamati vahele, et vältida varjude tekkimist

⇒ Hanging using cords and eyelets

Color: dark gray, after finishing, paint coating according to the customer’s request

Odor. The product is an M1 construction material. After installation, it does not emit particles or odours into the room air. NB! During installation, it is recommended to touch the cut surfaces or seal them with a hot iron

Cutting. The product is easy to cut to size with a sharp knife (see. carpet knife). During cutting, it is not recommended to lean on the panel or place heavy objects on it that compress the panel – distorts the cut edge

Sound insulation. A good result is achieved when the acoustic wall and ceiling cover at least two full areas of the room by 80%. Acoustic measurements of a 3x1m gypsum mini-room showed that the sound echo is up to 0.14 seconds, which, according to Akukon’s explanations, is less than is usually the case in bedrooms (0.5 seconds at low frequencies).

Storage: The boards must be stored on a smooth surface, preferably on a pallet. Protect the boards from moisture

Transport

⇒ The product must be carried with proper support and care – high tensile pressure can damage the panel.

⇒ If there is a risk that the product will be damaged during transport, additional covers or additional fastenings must be used

⇒ It is recommended to transport long parts in pairs and with two hands

⇒ The packaging and fastening tape are removed immediately before installation

Product dimensions: Length 1200mm, width 600mm, maximum width 2400mm

Product sample, 20mm peat board, data:

⇒ Specific gravity 1.8 kg/m²

⇒ Fire resistance classification (EN 13501-1:2018) : B

⇒ Thermal conductivity 0.037 W/mK (standard EVS-EN 12667)

⇒ Sound absorption class A (EN ISO 354; EN ISO 11654)

⇒ Measured 125kHz echo duration 0.6 seconds (see. Accukon measurement report)

⇒ Measured 500kHz echo duration 0.3 seconds (see Akukon measurement report)

⇒ Measured >1000kHz echo duration 0.2 seconds (see Akukon measurement report)

⇒ As the product is made from natural fibers, the color or surface smoothness may vary
